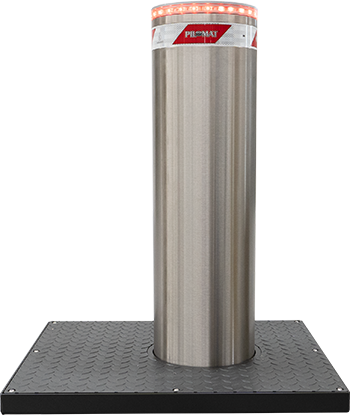

Automatic bollards with integrated hydraulic unit - 275/K12 900A

275/K12 900A

275/K12 900A

Automatic bollards with integrated hydraulic unit

Variant of the K/M line, designed to offer maximum security with optimal performance thanks to the hydraulic control unit developed internally in the Pilomat laboratories.

The 275/K12 900 A high-security automatic bollard is an ultra-protective solution, certified PAS68, IWA 14 and ASTM M50 up to 80 km/h. Also equipped with EPD certification, it can be fitted with an extractable pump to simplify maintenance in systems composed of 1 to 3 bollards.

Certifications

  • PAS68

    PAS68

  • IWA 14

    IWA 14

  • ASTM

    ASTM

  • Reg. epditaly0412 <br />Valid. 25.05.2028 www.epditaly.it

    Reg. epditaly0412
    Valid. 25.05.2028 www.epditaly.it

Standard configuration

Dissuasore
dispositivo per il controllo degli accessi veicolari in ferro verniciato color antracite
Pozzetto
Struttura interrata per l’alloggiamento del dissuasore
Stazione di gestione
Unità di controllo per il funzionamento del dissuasore

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Technical data

Cylinder material

 S355JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel

Cylinder diameter

 271mm

Cylinder height

 900mm

Cylinder thickness

 23mm

Movement principle

 Hydraulic

Cylinder normal steel finish

 Anti-corrosion treatment - grey anthracite standard painting

Cylinder stainless steel finish

 Grey anthracite standard painting or brushing

Reflecting adhesive strip

 Standard - height 55mm

Rising time

 4s

EFO rising time

 1,5s

Lowering time

 4s

Emergency lowering

 Standard

Connection line to control unit

 Standard 10m (max 80m - with heating element max 50m)

Voltage for control unit

 230/400 VAC (+/- 10%) 50/60Hz

Hydraulic pump

 Built-in the bollard

Protection class

 IP 67

Type of use

 2000 Cycles/day

Life units

 3.000.000 Cycles

Impact resistance

 700.000J

Breakout resistance

 2.000.000J

Certified to

 PAS68, IWA 14-1, ASTM M50 (K12)

Nominal operating temperature

 -40°C +70°C (for low temperatures see heating resistance)

Load class (EN124)

 D400

Dimensions

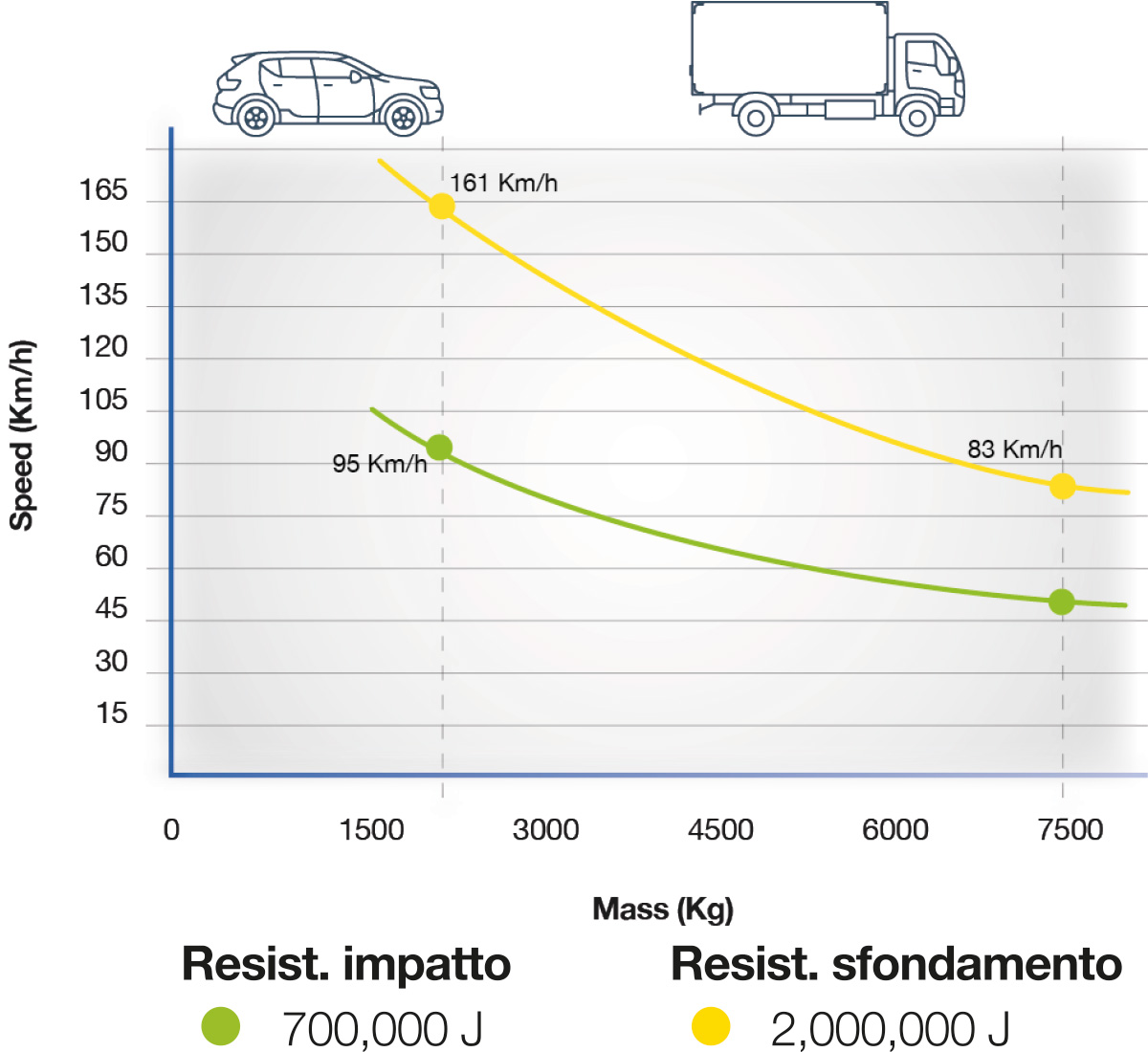

Crash test

Available finishes

  • Verniciato RAL

  • Satinato

  • Zigrinato

  • Trattamento marino anticorrosione

Safety and visibility

  • Fascia rifrangente

  • Lampeggiatore LED

  • Segnalatore acustico

  • Semaforo

  • Spire induttive

Special design

  • Piattello con incisione

  • Testa verniciata RAL

  • Inclinazione

  • Vasca riempibile per pietra

Functions

  • Abbassamento automatico

  • EFO (Salita rapida d’emergenza)

  • Elemento riscaldante

  • Gruppo UPS

  • Pompa esterna

  • Sensori: allarme, impatto

Control devices

  • Selettore a chiave

  • Lettore tessera

  • Pulsantiera a codice

  • Lettore impronta

  • Trasmettitore radio

  • Telecamera lettura targhe

  • App o Bluetooth

  • Programmatore orario

  • Attivatore GSM

  • P-Connect

  • Cloud Unit W5-B
