Automatic bollards with integrated hydraulic unit - 275/P 400A

275/P 400A

275/P 400A

Automatic bollards with integrated hydraulic unit

A variant of the Pilomat Series P Line, designed for the intelligent management of urban traffic in high-intensity environments.

The 275/P 400A automatic bollard is the ideal solution for situations with limited installation depth or the presence of underground utilities: only 700 mm of excavation are required. Available exclusively in stainless steel, it features a continuous RGB LED strip for effective yet discreet visual impact. Compact and reliable.

Certifications

  • Resistenza impatto verificata

    Resistenza impatto verificata

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari in ferro verniciato color antracite.
Pozzetto in aluzinc
Struttura interrata per l’alloggiamento del dissuasore.
Stazione di gestione
Unità di controllo per il funzionamento del dissuasore.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Technical data

Cylinder material

 X5CrNi 18-10 (AISI 304) stainless steel - X5CrNiMo 17-12-2 (AISI 316) stainless steel

Cylinder diameter

 273mm

Cylinder height

 400mm

Cylinder thickness

 6mm (AISI 304) - 4mm (AISI 316)

Movement principle

 Hydraulic

Cylinder stainless steel finish

 Grey anthracite standard painting or brushing

Reflecting adhesive strip

 Standard - height 55mm

Rising time

 2,5s

Lowering time

 1,5s

Emergency lowering

 Standard (optional: automatic lowering)

Safety reversal

 Standard

Connection line to control unit

 Standard 10m (max 30m - with heating element max 50m)

Voltage for control unit

 230/400 VAC (+/- 10%) 50/60Hz

Hydraulic pump

 Built-in the bollard

Protection class

 IP 67

Type of use

 2000 Cycles/day

Life units

 3.000.000 Cycles

Impact resistance

 40.000 J (approved by TÜV Rheinland)

Breakout resistance

 250.000 J

Nominal operating temperature

 -40°C +70°C (for low temperatures see heating resistance)

Load class (EN124)

 D400

Dimensions

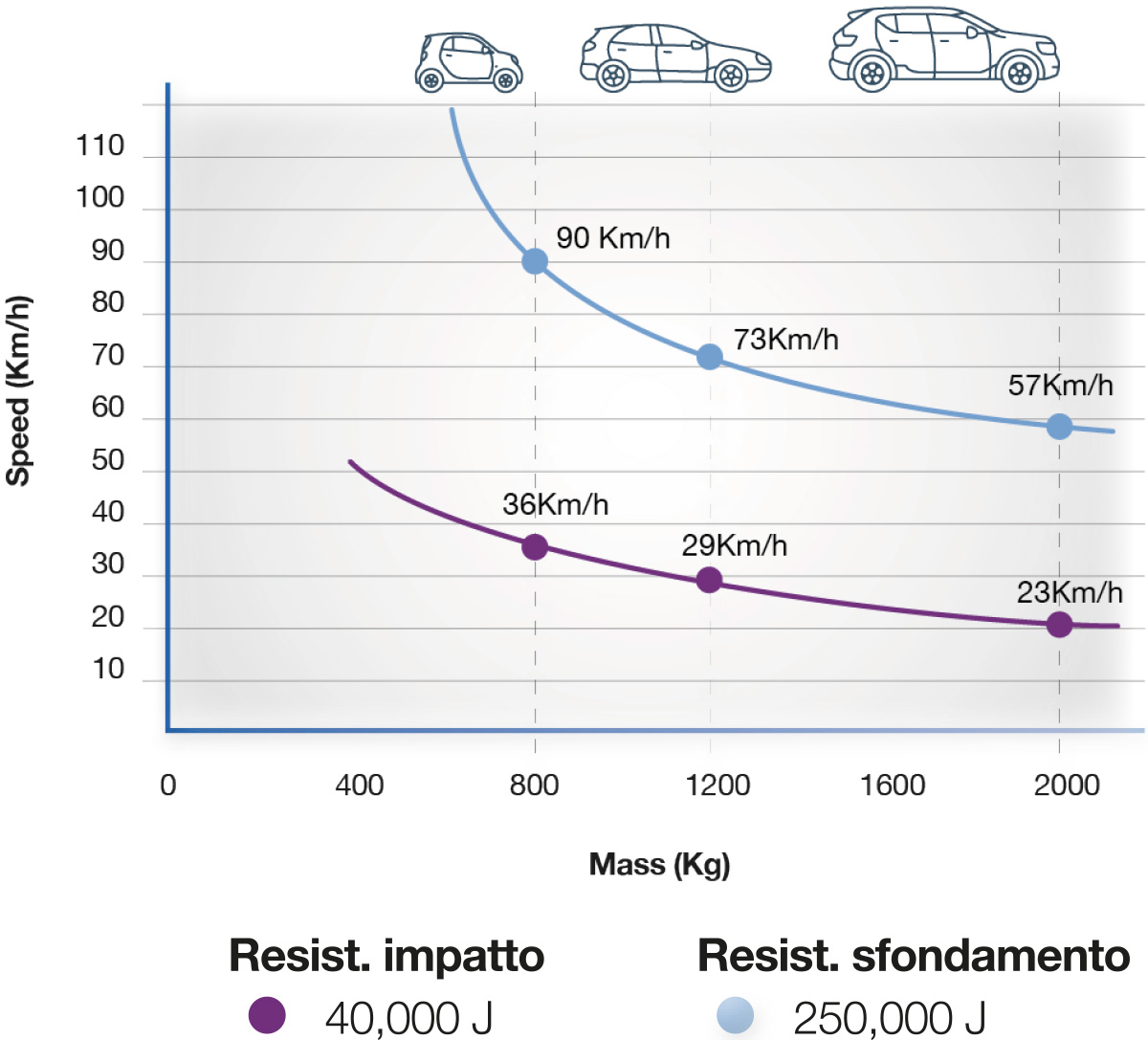

Crash test

Available finishes

  • Verniciato RAL

  • Satinato

  • Trattamento marino anticorrosione

Safety and visibility

  • Fascia rifrangente

  • Lampeggiatore LED

  • Segnalatore acustico

  • Funzione d’inversione

  • Semaforo

  • Spire induttive

Special design

  • Piattello con incisione

  • Testa verniciata RAL

  • Inclinazione

  • Cornice per pietra

Functions

  • Abbassamento automatico

  • Elemento riscaldante

  • Gruppo UPS

  • Sensori: allarme, impatto

  • Olio biodegradabile

Control devices

  • Selettore a chiave

  • Lettore tessera

  • Pulsantiera a codice

  • Lettore impronta

  • Trasmettitore radio

  • Telecamera lettura targhe

  • App o Bluetooth

  • Programmatore orario

  • Attivatore GSM

  • P-Connect

  • Cloud Unit W5-B
