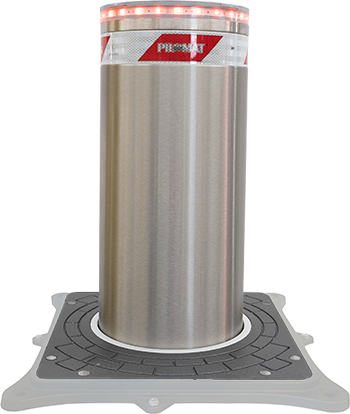

Automatic bollards with integrated hydraulic unit - 275/P 600A

275/P 600A

275/P 600A

Automatic bollards with integrated hydraulic unit

Variant of the Pilomat Series P Line, designed for intelligent management of urban traffic in high-intensity contexts.

The automatic bollard 275/P 600A is one of the best-sellers in the Pilomat range.

Available in steel, stone and stainless steel, it offers greater resistance than the 127/P and 220/P versions. It can be installed with an inclination, has TüV-certified impact resistance, an RGB LED strip, and is available with an optional removable pump. The 275/P 600A model was one of the pioneering products in public safety: it is the first in Italy to have received approval from the Ministry of Infrastructure and Transport, the Department for Land Transport and the Directorate-General for Motor Vehicles. This makes it the best solution for public administrations, which can install it throughout Italy without further authorizations.

This product is also effectively used as an anti-intrusion system and deterrent against theft. It is also perfect for integration with other access-control systems such as barriers and gates.

Certifications

  • Resistenza impatto verificata

    Resistenza impatto verificata

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari in ferro verniciato color antracite.
Pozzetto in aluzinc
Struttura interrata per l’alloggiamento del dissuasore.
Stazione di gestione
Unità di controllo per il funzionamento del dissuasore.

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Technical data

Cylinder material

 S235JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel

Cylinder diameter

 273mm

Cylinder height

 600mm

Cylinder thickness

 6mm (optional AISI 316: 4mm)

Movement principle

 Hydraulic

Cylinder normal steel finish

 Anti-corrosion treatment - grey anthracite standard painting

Cylinder stainless steel finish

 Grey anthracite standard painting or brushing

Reflecting adhesive strip

 Standard - height 55mm

Rising time

 3,5s

Lowering time

 2s

Emergency lowering

 Standard (optional: automatic lowering)

Safety reversal

 Standard

Connection line to control unit

 Standard 10m (max 80m - with heating element max 50m)

Voltage for control unit

 230/400 VAC (+/- 10%) 50/60Hz

Hydraulic pump

 Built-in the bollard

Protection class

 IP 67

Type of use

 2000 Cycles/day

Life units

 3.000.000 Cycles

Impact resistance

 40.000 J (approved by TÜV Rheinland)

Breakout resistance

 250.000 J

Nominal operating temperature

 -40°C +70°C (for low temperatures see heating resistance)

Load class (EN124)

 D400

Dimensions

Crash test

Available finishes

  • Verniciato RAL

  • Satinato

  • Zigrinato

  • Rivestimento in pietra

  • Trattamento marino anticorrosione

Safety and visibility

  • Fascia rifrangente

  • Lampeggiatore LED

  • Segnalatore acustico

  • Funzione d’inversione

  • Semaforo

  • Spire induttive

Special design

  • Piattello con incisione

  • Testa verniciata RAL

  • Inclinazione

  • Cornice per pietra

  • Full inox

Functions

  • Abbassamento automatico

  • Elemento riscaldante

  • Gruppo UPS

  • Pompa estraibile

  • Sensori: allarme, impatto

  • Olio biodegradabile

Control devices

  • Selettore a chiave

  • Lettore tessera

  • Pulsantiera a codice

  • Lettore impronta

  • Trasmettitore radio

  • Telecamera lettura targhe

  • App o Bluetooth

  • Programmatore orario

  • Attivatore GSM

  • P-Connect

  • Cloud Unit W5-B

Datasheet
