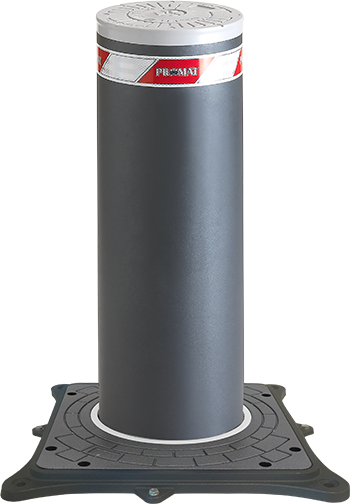

Automatic bollards with integrated hydraulic unit - 275/P 800A

275/P 800A

275/P 800A

Automatic bollards with integrated hydraulic unit

Variant of the Pilomat Series P line, designed for the intelligent management of urban traffic in high-intensity contexts.

The 275/P 800A automatic bollard is among our best-sellers. More resistant than the 127/P and 220/P versions, it is available in stone and stainless steel. It can be installed with inclination, and features TüV-certified impact resistance, a full RGB LED strip, and a removable pump (available as an optional), as well as increased height for greater visibility. Like the previous model, the 275/P 800A automatic bollard has received approval from the Italian Ministry of Infrastructure and Transport, the Department of Land Transport and the Directorate-General for Motor Vehicles. A solution aimed at public administrations, which can install this type of bollard throughout Italy without additional authorizations.

This product is also highly effective as an anti-intrusion system and theft deterrent. It is also ideal for integration with other access-control systems such as barriers and gates.

Certifications

  • Resistenza impatto verificata

    Resistenza impatto verificata

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari in ferro verniciato color antracite.
Pozzetto in aluzinc
Struttura interrata per l’alloggiamento del dissuasore.
Stazione di gestione
Unità di controllo per il funzionamento del dissuasore.

Technical data

Cylinder material

S235JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel

Cylinder diameter

273mm

Cylinder height

800mm

Cylinder thickness

6mm (optional AISI 316: 4mm)

Movement principle

Hydraulic

Cylinder normal steel finish

Anti-corrosion treatment - grey anthracite standard painting

Cylinder stainless steel finish

Grey anthracite standard painting or brushing

Reflecting adhesive strip

Standard - height 55mm

Rising time

4,5s

Lowering time

2,5s

Emergency lowering

Standard (optional: automatic lowering)

Safety reversal

Standard

Connection line to control unit

Standard 10m (max 80m - with heating element max 50m)

Voltage for control unit

230/400 VAC (+/- 10%) 50/60Hz

Hydraulic pump

Built-in the bollard

Protection class

IP 67

Type of use

2000 Cycles/day

Life units

3.000.000 Cycles

Impact resistance

40.000 J (approved by TÜV Rheinland)

Breakout resistance

250.000 J

Nominal operating temperature

-40°C +70°C (for low temperatures see heating resistance)

Load class (EN124)

D400

Dimensions

Crash test

Available finishes

  • Verniciato RAL

  • Satinato

  • Zigrinato

  • Rivestimento in pietra

  • Trattamento marino anticorrosione

Safety and visibility

  • Fascia rifrangente

  • Lampeggiatore LED

  • Segnalatore acustico

  • Funzione d’inversione

  • Semaforo

  • Spire induttive

Special design

  • Piattello con incisione

  • Testa verniciata RAL

  • Inclinazione

  • Cornice per pietra

  • Full inox

Functions

  • Abbassamento automatico

  • Elemento riscaldante

  • Gruppo UPS

  • Pompa estraibile

  • Sensori: allarme, impatto

  • Olio biodegradabile

Control devices

  • Selettore a chiave

  • Lettore tessera

  • Pulsantiera a codice

  • Lettore impronta

  • Trasmettitore radio

  • Telecamera lettura targhe

  • App o Bluetooth

  • Programmatore orario

  • Attivatore GSM

  • P-Connect

  • Cloud Unit W5-B
