275/P10 600A

Dissuasori rinforzati con unità oleodinamica

Variant of the P10 series, reinforced to increase security standards in logistics and industrial facilities.

The 275/P10 600A automatic bollard is significantly more resistant than the P series, thanks to its special thick stainless-steel cylinder (10 mm) and its reinforced structure with high resistance to impacts and pulling forces. It is the ideal solution for properly managing entrances in private or industrial areas, reducing the risk of theft and unauthorized intrusion. The impact resistance verified by TÜV makes the product particularly reliable, while the reduced excavation depth ensures easier installation. Also available with removable pump and different inclination options.

Technical data
Dimensions

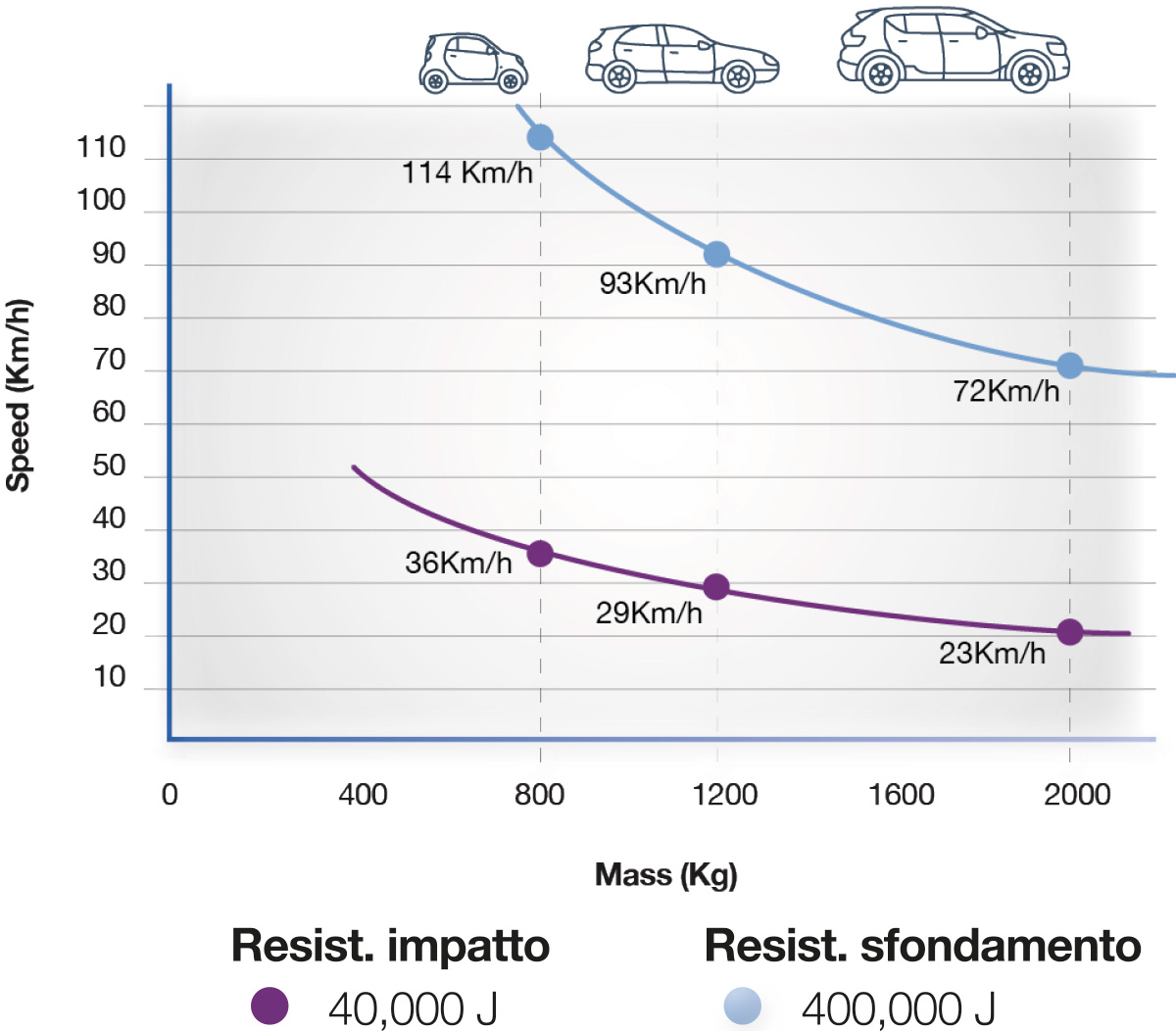

Crash test
Datasheet

Certifications

Resistenza impatto verificata

Application areas

Pedestrian area protection

Access control for residential and corporate driveways

Traffic management in public, corporate, and residential areas

Storefront protection

Restricted-area boundary control

Theft protection

Standard configuration

Dissuasore
Dispositivo per il controllo degli accessi veicolari in ferro verniciato color antracite

Pozzetto in aluzinc
Struttura interrata per l’alloggiamento del dissuasore

Stazione di gestione
Unità di controllo per il funzionamento del dissuasore

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Finishes
Safety
Design
Functions
Controller

Technical data

Cylinder material	S235JR normal steel - X5CrNi 18-10 (AISI 304) - X5CrNiMo 17-12-2 (AISI 316) stainless steel
Cylinder diameter	273mm
Cylinder height	600mm
Cylinder thickness	10mm
Movement principle	Hydraulic
Cylinder normal steel finish	Anti-corrosion treatment - grey anthracite standard painting
Cylinder stainless steel finish	Grey anthracite standard painting or brushing
Reflecting adhesive strip	Standard - height 55mm
Rising time	4s
EFO rising time	-
Lowering time	2s
Emergency lowering	Standard (optional: automatic lowering)
Safety reversal	Standard
Connection line to control unit	Standard 10m (max 80m - with heating element max 50m)
Voltage for control unit	230/400 VAC (+/- 10%) 50/60Hz
Hydraulic pump	Built-in the bollard
Protection class	IP 67
Type of use	2000 Cycles/day
Life units	3.000.000 Cycles
Impact resistance	40.000 J (approved by TÜV Rheinland)
Breakout resistance	400.000 J
Nominal operating temperature	-40°C +70°C (for low temperatures see heating resistance)
Load class (EN124)	D400
