Automatic bollards electromechanical Plug & Play - E-GO 114 800A

E-GO 114 800A

E-GO 114 800A

Automatic bollards electromechanical Plug & Play

A variant of the E-GO Series, the 114-800A automatic bollard has the same features as the E-GO 114-600A version, but with increased height. This ensures greater visibility, even for higher vehicles and small vans. The LED is a single white light, which can remain steadily illuminated even when the bollard is lowered, functioning like a spotlight with minimal energy consumption.

Ideal for private parking areas and residential driveways thanks to its ease of use and Plug&Play installation system. Designed for regular daily use, it is the perfect choice for those seeking reliable performance, user-friendly operation, and environmental efficiency.

Standard configuration

Bollard
Automatic stainless with integrated pit.

Control unit
Preconfigured and ready-to-use, Bi-Secur receiver included.
The bollard is supplied as standard:

  • Without LED
  • Head with smooth plate
  • Pilomat reflective strip Pilomat (white-red)

Customizations

A wide range of accessories makes it possible to customize the bollard to meet any aesthetic, functional, or security requirement.

Technical data

Cylinder material

 X5CrNi 18-10 (AISI 304) stainless steel

Cylinder diameter

 114mm

Cylinder height

 800mm

Cylinder thickness

 4mm

Cylinder stainless steel finish

 Brushing

Movement principle

 Electromechanical integrated in bollard

Reflecting adhesive strip

 Standard - height 22mmm

Rising time

 9s

Lowering time

 9s

Emergency lowering

 Standard - manual

Safety reversal

 Standard

Connection line to control unit

 Standard 15m (can be extended to max. 30 m on site)

Voltage for control unit

 230 V AC (+/– 10 %) 50 / 60 Hz

Electromechanical operator power consumption

 100W (150W with heating element)

Consumption during standby

 0,8W

Time until standby

 1min

Life units

 200.000 Cycles

Type of use

 100 cycles/day

Protection class

 IP 69K

Breakout resistance

 16.000 J

Nominal operating temperature

 -20°C +60°C (for low temperatures, see heating element)

Weight for bollard and foundation box

 25 kg

Packaging dimension

 150 x 22 x 22 cm

Packaging dimension for control unit and accessories

 40 x 40 x 20 cm

Load class (EN124)

 D400

Dimensions

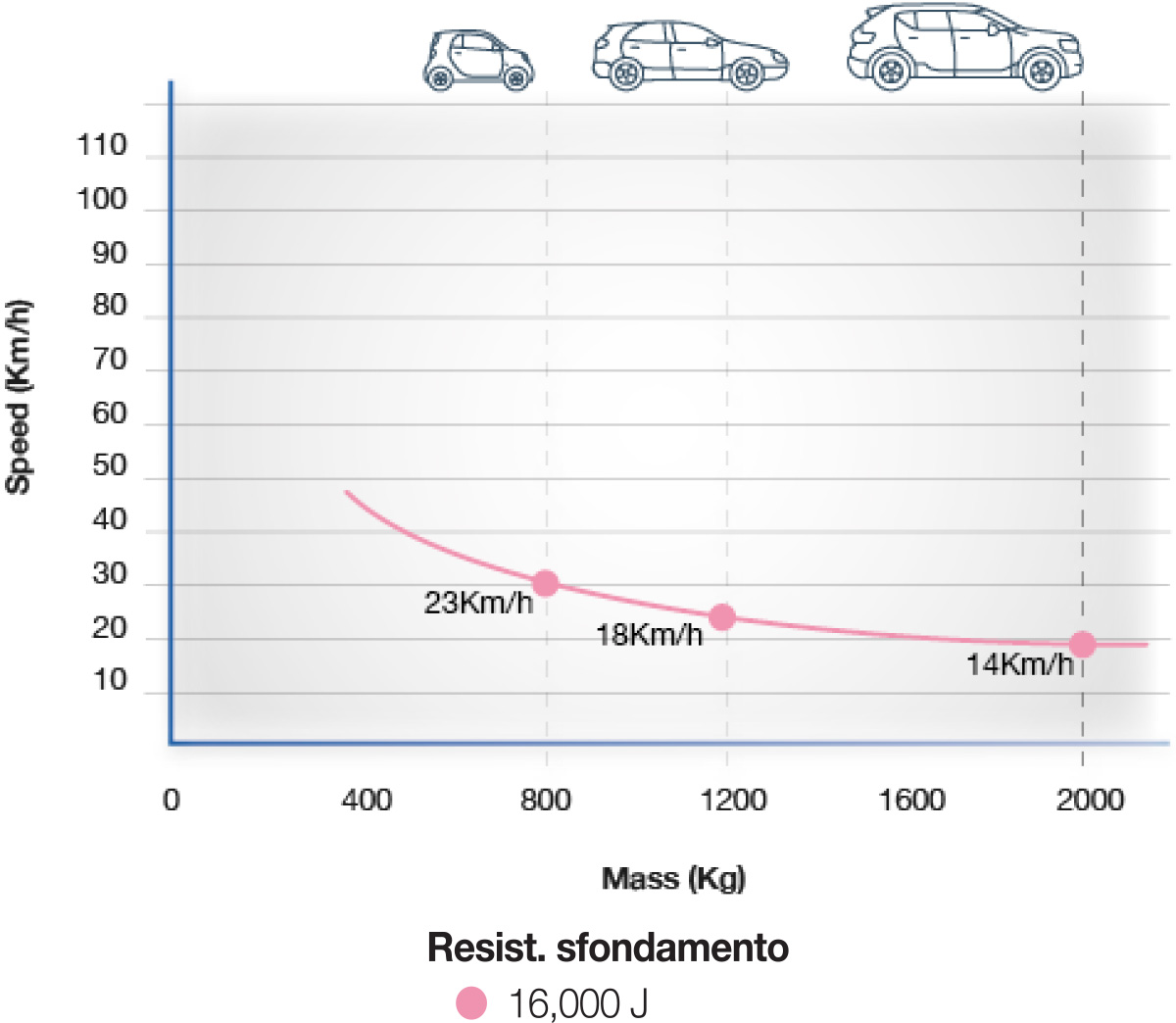

Crash test

Available finishes

  • Brushing

Safety and visibility

  • Reflecting strip

  • LED lighting point

  • Safety reverse function

Special design

  • Custom engraving (only without LED)

Functions

  • Heating element

  • Emergency battery

  • Interface module

Control devices

  • Key switch

  • Card reader

  • Numeric key pad

  • Finger scan

  • Hand transmitter

  • License plate reader

  • App or Bluetooth

  • Timer (week - year)

  • GSM activator

  • P-Connect

  • Cloud Unit W5-B
